Edit Transforms


This dialog allows you to perform contrast enhancement and other transform operations on layers within the current algorithm. You can interactivly alter the transform and preview the resulting image in the preview window.

It is possible to change the histogram style via a section on the MapImagery -> MapImagery Options -> General Tab window.   You can choose between Cumulative (Default), Non-Cumulative, and De-Quantised Histogram styles.

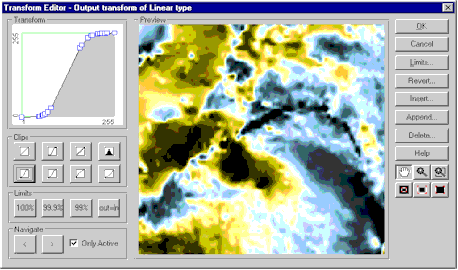

Dialog Snapshot


Common Elements

Like most of the other MapImagery Editor dialogs, the dialog has a Preview Window along with a set of controls for easily zooming and panning the preview window to the desired location and resolution.

The dialog also has an Only Active check box that toggles between showing just the active algorihtm elements (the default) and all of the algorithm elements.
